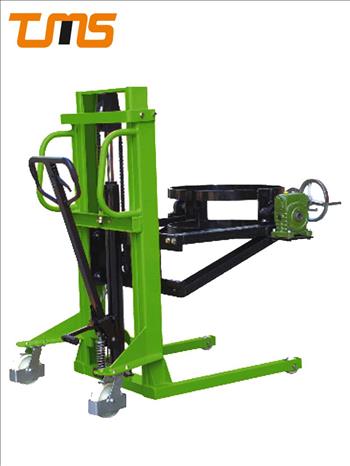

Drum stacker YTD35 model

Drum stacker
کد کالا :
وضعیت : موجود نمی باشد



Capacity(Kg) :
350

Load centre distance(mm) :
570

Wheelbase(mm) :
1115

Tyre size,front(mm) :
ᶲ80×36

Tyre size rear(mm) :
ᶲ147×40

Height mast lowered(mm) :
1270/1490

Max.lift height(mm) :
1945/2385

Height,mast extended(mm) :
2100/2640

Lowered fork height(mm) :
385

Overal lenght(mm) :
1520

Overall width(mm) :
1050

Width Overall forks(mm) :
840

Ground clearance,laden,below mast(mm) :
22

Turning radius(mm) :
1200

Lowering speed,laden/unladen(mm/s) :
manual control

Service weight(kg) :
235

Max.Height of Drum(mm) :

Min.Height of Drum(mm) :

Drum Dia(mm) :

Drum volume(Liters) :

Drum weight(kg) :

Drum type :

Fork Arm carrier Dimensions(mm) :

Device dimension(mm) :
