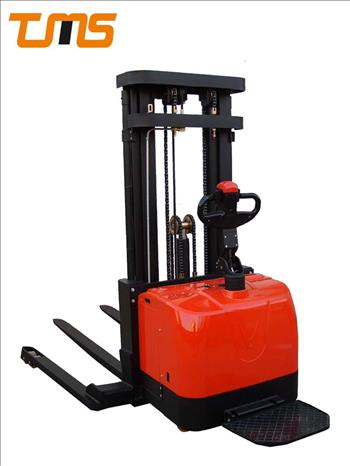

Full electric stacker AC SB16-960 model

__________________________________
Capacity: 1600 Kg
کد کالا :
وضعیت : موجود نمی باشد

Product Advantag

operating and steering system in electrical stacker
Power steering system
very easy operating
Curtis controller
AMP connectors
NSK bearing
driving floating and vertical drive in electrical stacker
Vertical drive system
Driving Floating Adjustable system design
Maintenance free AC motor provides
stronger power and enhances gradeability.
boost cylinder in electrical stacker
Power boost cylinder prevents wheel skid
open inner layout in electrical stacker
Open inner-structure, numbered wire harness in clear layout
energy saving in electrical stacker
Electronic lift limitation switch ensures safety and energy-saving.
side battery in electrical stacker
Side-extraction battery More convenience
handle operations in electrical stacker
Automatic reset handle
and pedal by gas springs
Reduce mechaical shock.
Three descent speed
Descending fast without
load and slow with load
machining system in electrical stacker
CNC machining ensures machining precision
distance between forks in SB16-960 diagram


Model :
SB

Configuration No :
960

Type :

Mast type :

Load capacity(kg) :

Load center(mm) :
600

Wheel base(mm) :

Operating type :

Wheels type :
PU

Wheel quantity/Driving wheel/Balance wheel/Bearing wheel :
1/2/4

Standard lift height(mm) :
4500

Max extended height(mm) :
5000

Mast lowered height(mm) :
2085

Lowered fork height(mm) :
55

Fork size(lenght/width/tickness)(mm) :
1070/100/40

Overall lenght(mm) :
2050/2470

Overall width(mm) :
1470

Outside width between forks(mm) :
200~880

Inside width between forks(mm) :

min tuning radius(mm) :
1630/2040

Min Aisle width for pallets 800×1200(mm) :
2230/2625

Min Aisle width for pallets 1000×1200(mm) :
2260/2650

min ground clearance(mm) :
30

Travel speed,laden/unladed(km/h) :
5/5

Lift speed,laden/unladen(mm/s) :
230/130

Lowering speed,laden/unladen(mm/s) :

Gradeability,laden/unladed(%) :
7/5

Drive motor/lift motor(kW) :

Battery voltage(V) :

Battery Capacity(Ah) :
24/280

Brake :

Controller :

Battery weight(kg) :
235

Service weight(with battery)(kg) :

Lift motor(kW) :
3(DC)

Drive motor(kW) :
1/5(AC)

Steering motor(kW) :
0/15(AC)

Service weight(kg) :
1648
