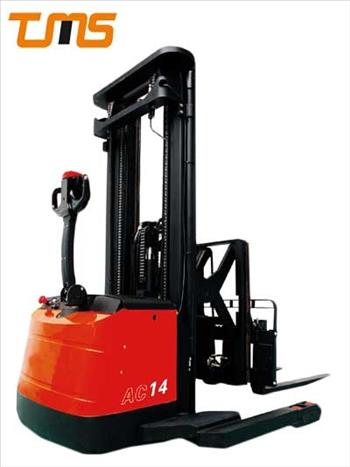

Rich stacker model RSB14-850

___________________________
Capacity: 1400 Kg
کد کالا :
وضعیت : موجود نمی باشد



Model :
RSB14

Configuration No :
850

Type :
Reach(Tilt)

Mast type :
Standard-3-stages

Load capacity(kg) :

Load center(mm) :
500

Wheel base(mm) :
1478

Operating type :
Walkie

Wheels type :
PU

Wheel quantity/Driving wheel/Balance wheel/Bearing wheel :
1/0/4

Reach distance(mm) :
0-550

Standard lift height(mm) :
3800/4000/4500/5000/55000

Max extended height(mm) :
4991/5191/5691/6191/6691

Mast lowered height(mm) :
1914/2081/2248/2415/2582

Lowered fork height(mm) :
55

Fork size(lenght/width/tickness)(mm) :
1070/100/40

Overal lenght(mm) :
2225

Overall width(mm) :
1430

Outside width between forks(mm) :
200-755

Tilt of fork(F/B)(mm) :
4/3

min tuning radius(mm) :
1566

Min Aisle width for pallets 800×1200(mm) :
2135

Min Aisle width for pallets 1000×1200(mm) :
2315

min ground clearance(mm) :
30

Travel speed,laden/unladed(km/h) :
3.5/4

Lift speed,laden/unladen(mm/time) :
130/150

Lowering speed,laden/unladen(mm/s) :
100/180

Gradeability,laden/unladed(%) :
3/5

Drive motor(kW) :
DC0.15

Lift motor(kW) :
DC3.0

Steering motor(kW) :
AC1.5

Battery voltage(V) :
24

Battery Capacity(Ah) :
345(Options:FAAM345)

Brake :
Electromagnetic/regenerative

Controller :
Curtis

Battery weight(kg) :
300

Service weight(with battery)(kg) :
2400

Distance Shift fork Side(mm) :
_
