Electric Pallet Truck PB25-Z model

Summary:

___________________________
Capacity: 2500 Kg


ModelPB25Z
Loading Capacity(Kg)2500
Wheel base(mm)1442
Min.fork lowered height(mm)85
Max.fork lifting height(mm)125
Travel speed,laden/unladed(km/h)7/6.5
Lift speed,laden/unladed(mm/s)0.04/0.03
Lowering speed,laden/unladed(mm/s)0.045/0.05
Gradeability,laden/unladed(%)6/3
Drive motor(kW)2.2
Lift motor(kW)1.5
Battery weight(Kg)321
Load center(mm)600
Min Aisle width for pallets 800×1200(mm)2220
Min Aisle width for pallets 1000×1200(mm)2120
Fork dimension(l/w/t)(mm)1150/170/55(1100/1220)
Outside overall fork width(mm)520/550/650/685
Service weight(kg)940
Turning radius(mm)1680
Battery dimension(mm)648×247×600
K5(V/Ah)24/320
Max Gradeability,laden/unladed(%)12/6

Advantages

SAFETY AND PRODUCTIVITY
2000/2500kgs load capacity
Advanced AC control with reliable performance is easy to maintain. Speed frequency control makes good control performance.
Electric power steering system(EPS)
Intelligentized regenerative brake system combined with electromagnetic system allows safe and reliable brake and prolongs life time.
Side battery with roll out system, convenient to handle.
Connecting rod will not bend and deform at working, and the length can be adjust accurately and conveniently.
The guide wheel on fork head makes convenient pallet work.
High level configuration of motor power and battery capacity, max travel speed under laden arrives 7.5-7.8km/h, greatly improved work efficiency and reliability.
With good looking and small turning radius
The key components is set compact and reasonable, which is convenient to maintenanc

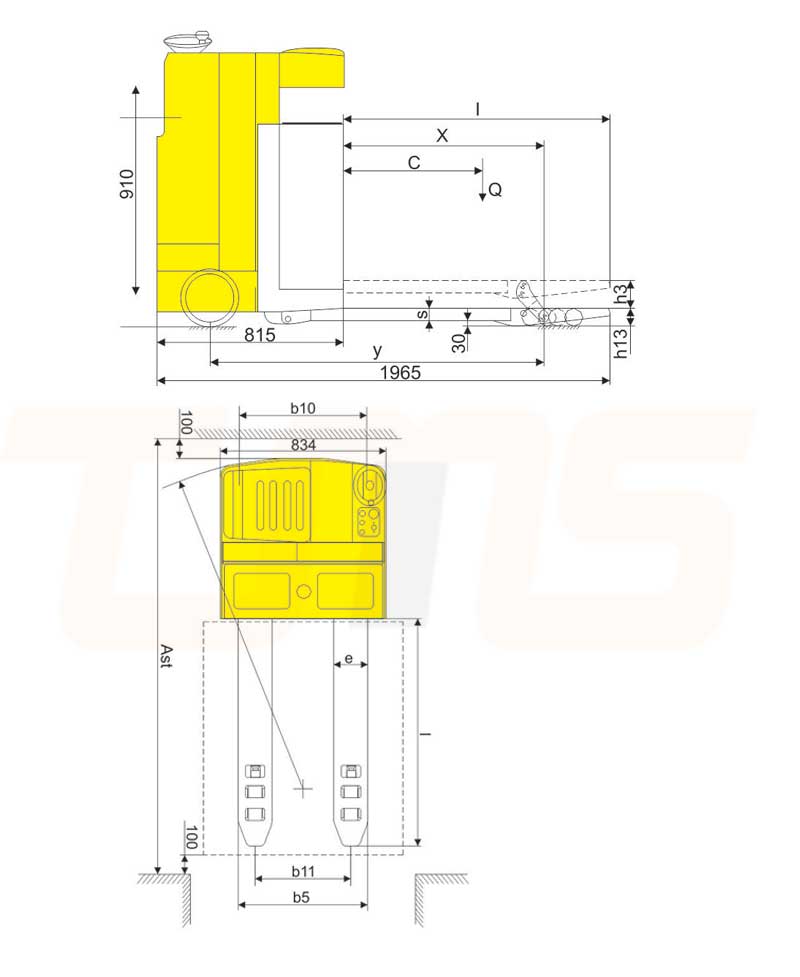

dimension of pb25z that has electronic power steering system
